Cameras

Rugged Video has a variety of High Definition compact cameras and high resolution standard definition bullet cameras.  Rugged Video’s most popular cameras are offered as off the shelf products, however, Rugged Video can source a wide range of cameras for unique applications.  If your project requires a camera not shown on the site, please contact us for more information on Rugged Video’s offerings.

29mm Square HD Camera

Image Quality: ****
Image Processing: ****
Low Light: ****



  • 1/3″ 2.1MP Sony Starvis IMX-327
  • 3G-SDI – 1080p60
  • CS Mount Lenses
  • 1/4-20 Mount Bottom
  • 29mm x 29mm x 29mm
  • Cockpit/Cabin Mounting


Available Styles:

Direct – HRS Integrated Power
Direct – Thumb Screw to 2.1×5.5mm Barrel (16ft)

19mm Micro-Bullet Camera

Image Quality: ****
Image Processing:  ****
Low Light: ****



  • 1/3″ 2.1MP Sony Starvis IMX-327
  • 3G-SDI – 1080p60 & NTSC/PAL
  • S-Mount M12 Lenses
  • 1/4-20 Mount Collar & Back
  • 19mm x 56mm (d x l)
  • IP68 Waterproof
  • RS-485 Control Option

Available Styles:
Direct – HRS Integrated Waterproof SDI/Power/Remote
Pigtail 12″ – HRS Integrated Waterproof SDI/Power/Remote
Pigtail 24″ – HRS Power
Pigtail 24″ – 2.1 x 5.5mm Power
Pigtail 34″ – for Robinson R44

HD30 Low-Profile Camera

Image Quality: ****
Image Processing: ****
Low Light: ****



  • 1/3″ 2.1MP Sony Starvis IMX-327
  • 3G-SDI – 1080p60 & NTSC/PAL
  • S-Mount M12 Lenses
  • 1/4-20 Mount Collar & Back
  • 29.8mm x 18.6mm (26.7mm w/lens) (l & w, d)
  • RS-485 Control Option

Available Styles:
Pigtail 24″ – SDI/Power/Remote
Direct – HRS Integrated

HDZ Zoom Hoist Camera

Image Quality: ****
Image Processing: ****
Low Light: ****



  • 1/3″ 2.18MP Sony Exmor
  • 3G-SDI – 1080p60
  • CS Mount Lenses
  • 1/4-20 Mount Bottom
  • 29mm x 29mm x 29mm
  • Cockpit/Cabin Mounting
  • RS-485 Control Option

Available Styles:
Direct – HRS Integrated Power
Direct – Thumb Screw to 2.1×5.5mm Barrel (16ft)

HD39E H.264 Network Camera

Image Quality: ****
Image Processing:  ****
Low Light: ****



  • 1/3″ 2.1MP Sony Starvis
  • 1080p30, H.264 Dual Streams
  • Designed for MIL-STD-704 & DO-160
  • Backup recording to internal MicroSD Card
  • S-Mount M12 Lenses
  • 1/4-20 Mount Collar & Back
  • 41.9mm x 39mm x 39mm (l x w x h)
  • Fully Sealed, Fog-Free Argon-Filled
  • Remote Control API

Available Styles:
Hirose LF07WBR-6P
D38999 (Various Part Nos. Avail.)

HD21E H.264 Network Bullet Camera

Image Quality: ****
Image Processing:  ****
Low Light: ****



  • 1/3″ 2.1MP Sony Starvis
  • 1080p30, H.264 Dual-Streaming
  • Backup recording to internal MicroSD Card
  • Field-replaceable S-Mount M12 Lenses
  • 1/4-20 Mount Collar & Back
  • 21.5mm x 96.7mm (d x l)
  • IP67 Waterproof
  • Remote Control API

Available Styles:
Waterproof RJ45 w/PoE + 2.1×5.5mm barrel
Waterproof RJ45 w/HRS Power
Single D38999 Connector
Other styles available

HDE1 Embedded OEM Camera

Image Quality: ****
Image Processing:  ****
Low Light: ****



  • Based on HD19 camera
  • Remote-mount sensor for custom camera designs
  • 1/3″ 2.1MP Sony Starvis IMX-327
  • 3G-SDI – 1080p60 & NTSC/PAL
  • RS-485 Control Option
  • Molex Pico Blade Interface
  • MMCX coax connector for
    3G-SDI Output

Available Options:
OEM kit w/3.8″ FPC sensor cable
PicoBlade interface cable
MMCX to BNC adapter cable
Machined M12 lens mount
Custom camera enclosure

HDX Flight Tour
Camera

Image Quality: ****
Image Processing: ****
Low Light: ****



  • 1/3″ 2.1MP Panasonic
  • 3G-SDI – 1080p60 & NTSC/PAL
  • S-Mount M12 Lenses
  • 1/4-20 Mount Bottom & Back
  • 32mm x 116mm (d x l)
  • IP68 Waterproof

Available Styles:
Direct – HRS Integrated SDI/Power/Remote
Pigtail 24″ – HRS Power
Pigtail 24″ – 2.1 x 5.5mm Power
Pigtail 34″ – for Robinson R44

(OBSOLETE) HD25 Mini-Bullet Camera

Image Quality: ****
Image Processing: ****
Low Light: ****



HD25 and HD23 cameras are no longer available for purchase.









    Want more info on cameras?

    15 + 14 =

    Plus Packs

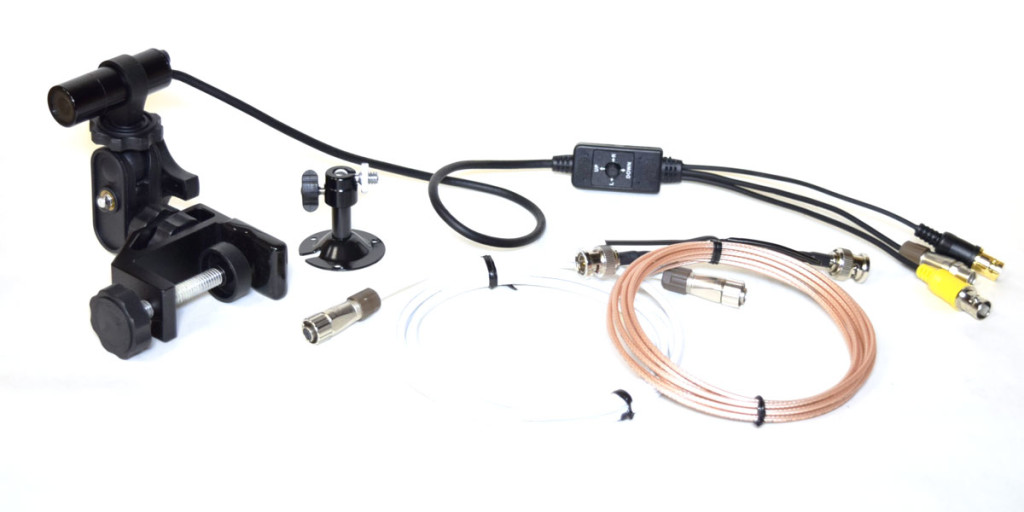

    Some cameras are available as “Plus Packs” which include: Cabling, Mounts and Accessories needed to connect cameras to Rugged Video Recorder, Switchers, or Multiplexers.  Pricing and contents will vary based on application.  Contact Rugged Video sales for more information.

    PLUS_PACK

    Plus Packs may include: Camera, One Premium Mount, Pedestal Mount, M27500 Tefzel Extension, and one MIL-17/94 RG-179 3G-SDI Video Extension Cable.

    Mounts

    Included in Plus Packs are:

    • Collar Mount (For HD19, 23, 25)
    • Pedestal Mount
    • Clamp or Suction Mount or Mighty Mount

    Cabling

    Cabling used in Plus Packs is typically made to length for the customer and includes:

    • Camera Power – M27500 Tefzel
    • HD Video – MIL-C-17/94 RG179



    *a small price increase will occur for lengths longer than 15ft.

    **cables have a maximum length of ~300ft.
